High-rate Thickening Equipment
NGZ High Efficiency Thickener
For Slurry Thickening & Water Recovery
Designed for continuous slurry thickening, underflow concentration, clarified-water recovery, and downstream filtration support in mining, hydrometallurgy, and environmental projects.
Thickening
Slurry Concentration
3-8X
Efficiency Reference
Recovery
Process Water Reuse
Auto
Rake Lifting
Key Benefits for Thickening and Water Recovery Projects
Use this product when a project needs stable slurry concentration, clarified water recovery, and reliable underflow control before filtration or tailings discharge.
High-efficiency Settling
Tank structure and feed design help improve settling and concentrate bottom flow toward the discharge center.
Process Water Recovery
Clarified overflow can be collected for reuse, helping reduce fresh-water demand in suitable processes.
Stable Underflow Density
Rake concentration and discharge control support stable downstream filtration or dry discharge.
Automatic Rake Lifting
Hydraulic rake lifting and overload protection help protect the drive system when resistance increases.
Heavy-duty Structure
Central drive, circular tank, rake arm, bridge, and underflow system are configured for industrial use.
Downstream Process Support
Thickened slurry can support ceramic filtration, belt filtration, pressure filtration, or tailings handling.
Applications in Mining Slurry Thickening
NGZ High Efficiency Thickener is used before filtration, dry discharge, or water recycling steps where slurry concentration and clarified overflow matter.
Tailings Thickening
For tailings concentration before filtration, dry discharge, backfill, or water recovery.
Discuss Application →Concentrate Thickening
For improving feed concentration before downstream filtration or transport.
Discuss Application →Hydrometallurgy Slurry
For leaching, residue, and process slurry concentration where continuous thickening is required.
Discuss Application →Environmental Water Recovery
For industrial slurry clarification and recovery of process water under suitable conditions.

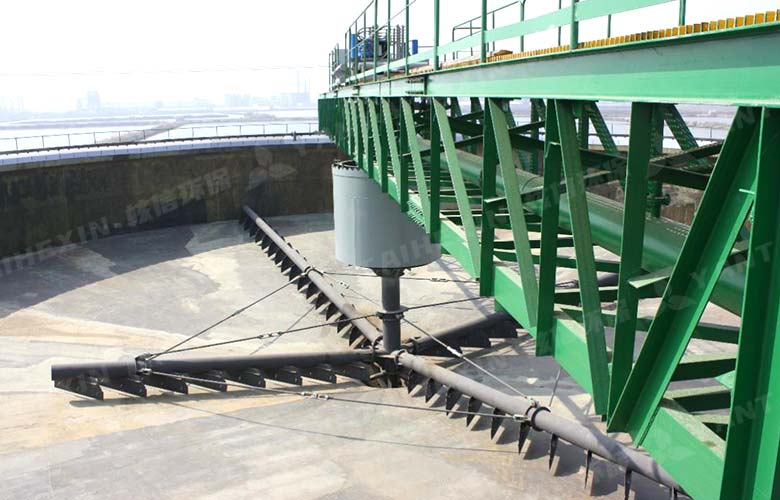

Discuss Application →Working Principle
Slurry enters the thickener feed area and settles under gravity, often with process conditioning where required. Clarified water overflows from the top while the rake mechanism moves settled solids toward the center for underflow discharge.
Slurry Feeding
Slurry enters the central feed area for controlled distribution.
Settling
Solids settle while liquid rises toward the overflow area.
Clarified Overflow
Clarified liquid is collected from the upper overflow channel.
Rake Concentration
Rake arms move settled solids toward the center.
Underflow Discharge
Concentrated slurry is discharged from the bottom outlet.
Rake Protection
Hydraulic lifting protects the rake when resistance increases.
Main Structure and Components
The NGZ Thickener includes the tank body, feed well, central drive, rake mechanism, hydraulic lifting system, overflow launder, underflow outlet, and control system.

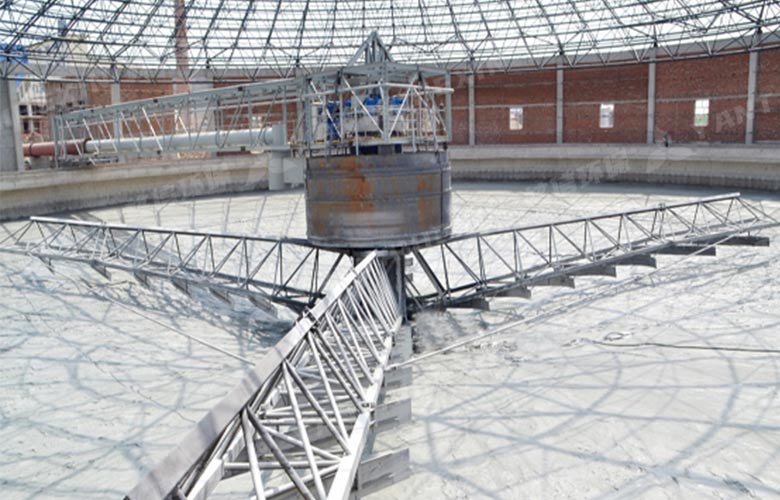

Circular Tank Body
Tank shape, bottom slope, and compression zone support slurry settling and concentration.

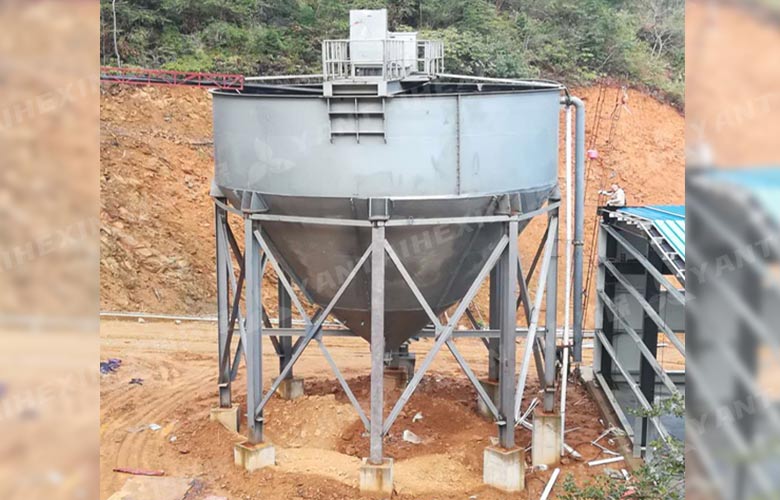

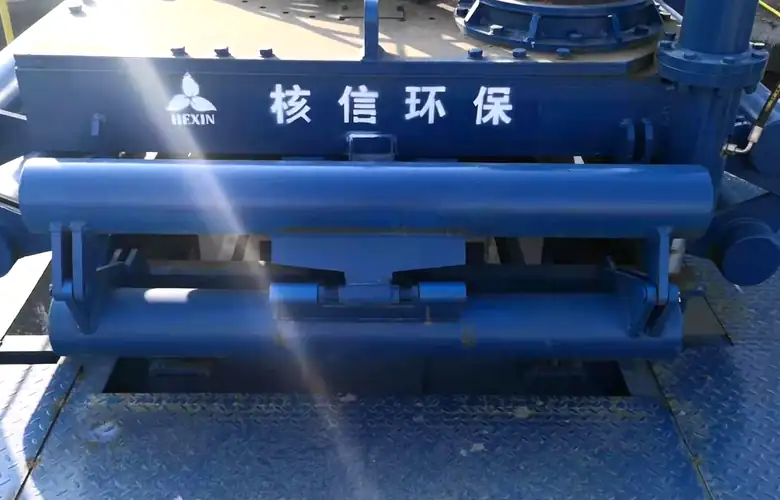

Central Drive System
Central drive rotates the rake mechanism and supports continuous underflow collection.

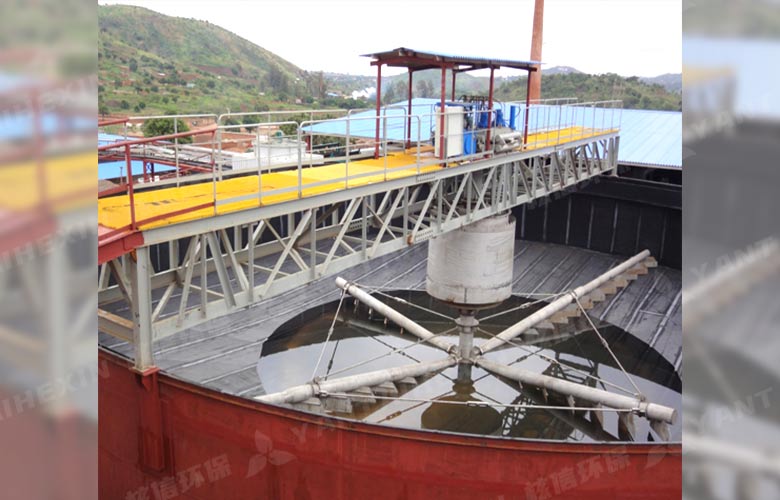

Rake Mechanism
Rake arms scrape settled solids toward the center discharge area.

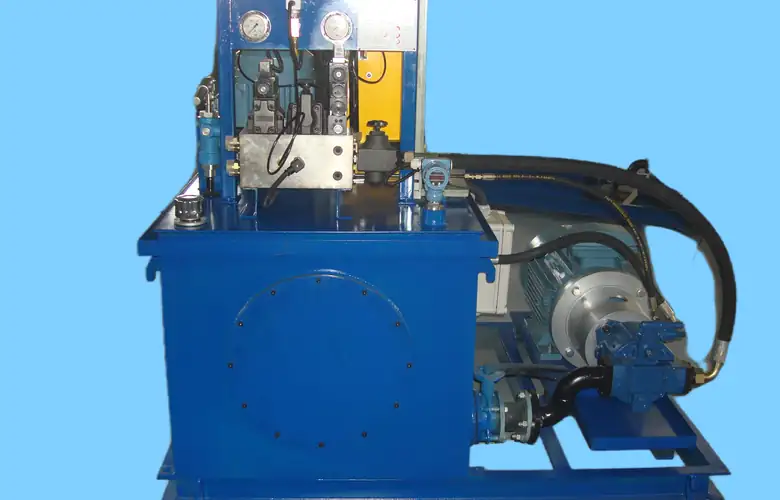

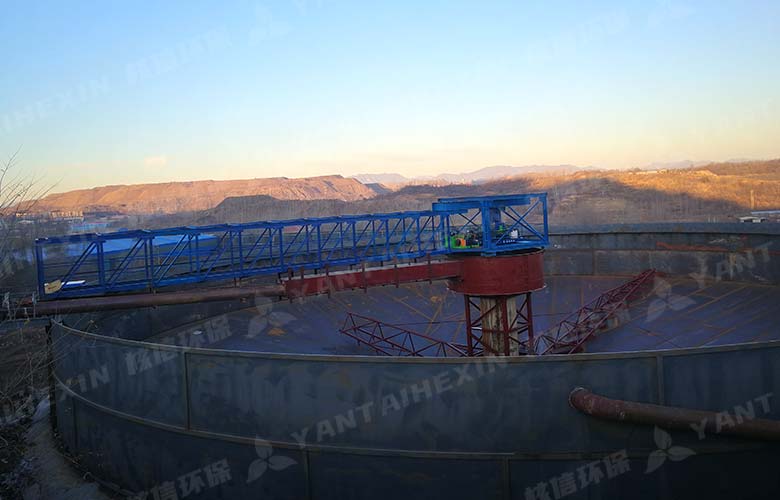

Hydraulic Lifting
Hydraulic rake lifting helps protect the drive system under high resistance.
Overflow Launder
Clarified overflow is collected for recycling or downstream process use.

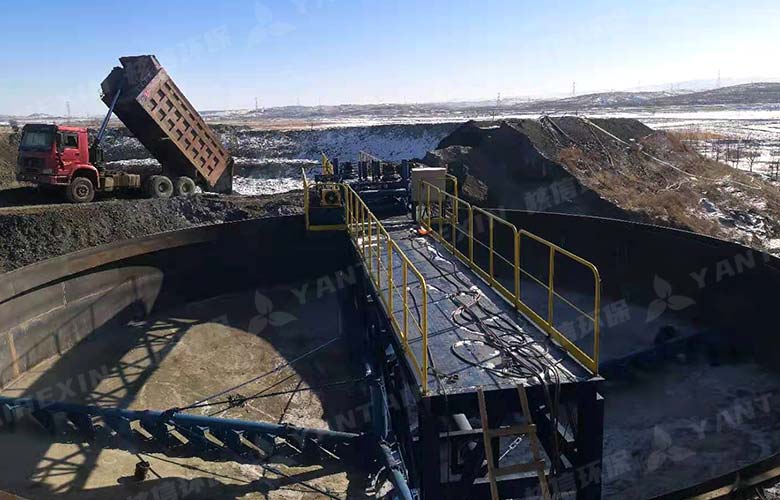

Underflow Discharge
Concentrated underflow is discharged for filtration, backfill, or dry discharge process.

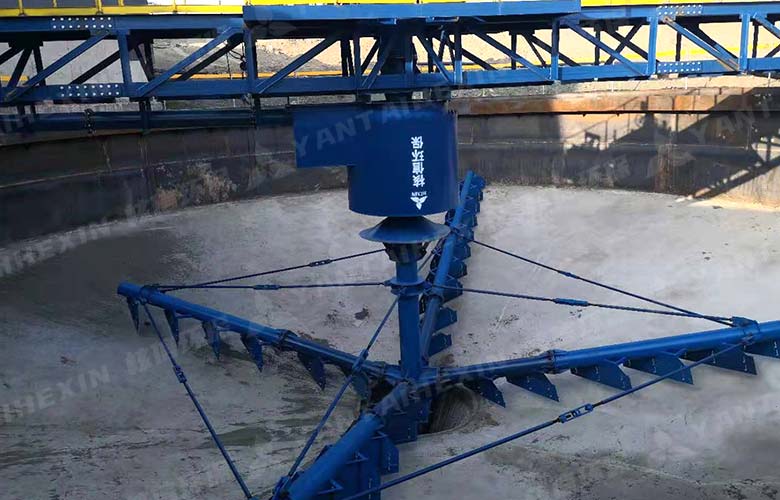

Bridge and Platform
Bridge, platform, and safety access support operation and inspection.

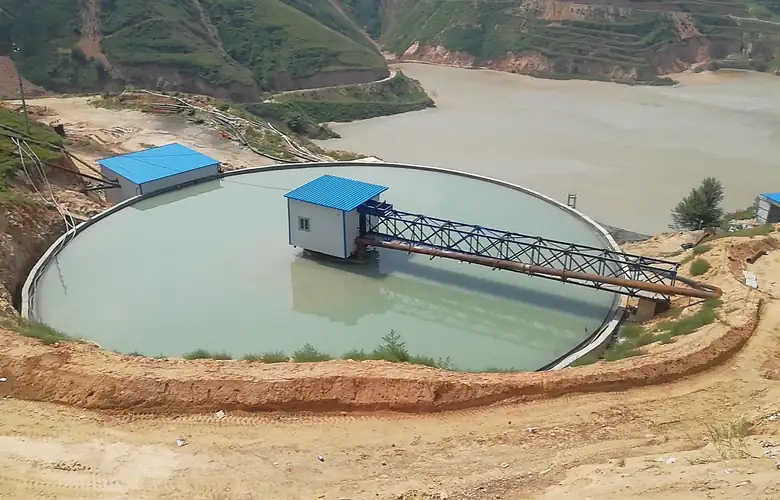

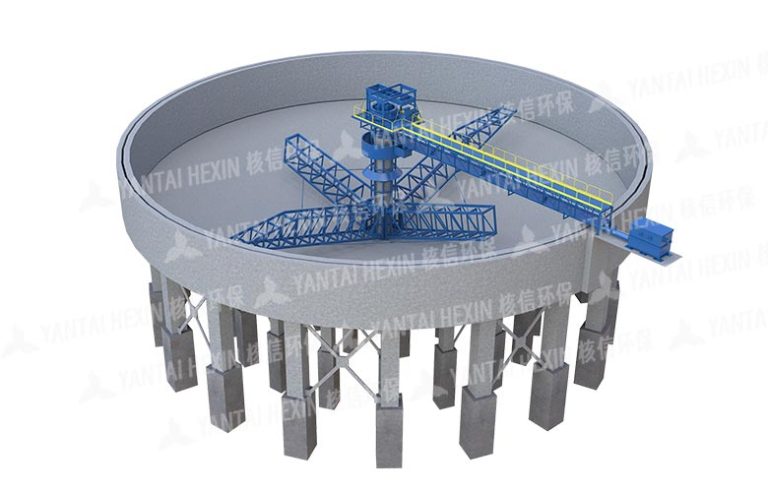

Complete Thickener
Integrated equipment layout for slurry thickening and water recovery projects.
Technical Specifications
NGZ High Efficiency Thickeners are configured by tank size, material behavior, feed concentration, required underflow density, overflow clarity, and project layout.
| Selection Item | Reference Configuration | Typical Selection Basis |
|---|---|---|
| Tank Body | Variable slope or deep cone option | Selected by slurry settling behavior and underflow concentration target |
| Drive and Rake | Central drive with automatic rake lifting | Selected by resistance, solids loading, and safety requirement |
| Process Result | High underflow concentration under suitable conditions | Final result depends on material test, flocculant, feed stability, and operation |
Tank size, drive power, rake lifting and protection functions, overflow quality, and underflow density are confirmed from the slurry data and project requirements.
Material and Configuration Options
Different project conditions require different equipment sizes, contact-part materials, process systems, control interfaces, and service scopes.
Tank Body Design
Circular tank, bottom slope, feed well, and overflow arrangement are selected according to process requirements.
Drive and Rake System
Central drive, rake arm, hydraulic lifting, and overload protection are configured for stable operation.
Overflow and Underflow
Overflow clarity and underflow density targets guide equipment selection and process configuration.
Automation Interface
Rake lifting signal, overload alarm, underflow pump interface, and control system can be reviewed by project scope.
Why Customers Trust Hexin
Quality Control from Raw Materials to Factory Testing
A thickener depends on tank fabrication, drive reliability, rake alignment, hydraulic protection, overflow collection, and underflow discharge stability. These points should be checked before delivery.
Drive and Hydraulic Review
Check central drive, hydraulic rake lifting, pressure signal, and overload protection logic.
Tank and Structure Inspection
Inspect tank components, bridge, platform, rake arm, underflow outlet, and surface protection.
Operation Verification
Verify rotation, rake lifting response, control alarm, and site interface before handover where applicable.
Technical Confirmation
Review slurry type, capacity, settling target, underflow density, overflow clarity, and site layout.
Fabrication Control
Control tank dimensions, bridge structure, rake arm fabrication, welding, and protective coating.
Drive Assembly
Inspect drive unit, hydraulic station, central support, lifting cylinder, and rotation mechanism.
Process Interface
Check feed, overflow, underflow, flocculant, pump, and control interfaces according to project scope.
Project-based Filtration Solutions
Thickening projects vary by slurry source, solid concentration, particle size, settling behavior, required underflow density, and water recovery target. Hexin recommends tank and process configuration after reviewing material and plant data.
Tailings Thickening and Water Recovery Project
For tailings treatment where slurry concentration and clarified water recovery are required before filtration or dry discharge.
Send Project Data →Hydrometallurgy Slurry Thickening Project
For leaching residue, process slurry, and recycle-water duties needing stable thickening.
Send Project Data →Filtration Feed Stabilization Project
For plants needing more stable feed concentration before ceramic, belt, or pressure filtration.
Send Project Data →
Delivery, Service and Export Packing
Agree manufacturing, shipment and commissioning responsibilities as part of the technical proposal and supply contract.
Manufacturing Schedule
After technical proposal and supply scope confirmation, Hexin prepares a project-specific production schedule based on equipment size, materials, purchased components, and automation requirements.
Commissioning Support
Support can cover installation review, no-load testing, process checks, equipment adjustment, performance observation, and operator training according to project scope.
Export Packing
Large equipment can be fixed with steel structure packing, while small components and electrical parts can use wooden cases with moisture and rust protection.
Need a NGZ High Efficiency Thickener?
Send us your slurry type, feed capacity, feed concentration, target underflow density, overflow requirement, and project country. Hexin engineers will help recommend a suitable thickening solution.
What to Include in Your Inquiry
Material Information
Slurry source, particle size, feed concentration, settling behavior, pH value, temperature, and corrosiveness.
Process Requirements
Capacity, target underflow density, overflow clarity, water recovery target, and downstream process.
Site and Equipment Conditions
Tank layout, underflow pump, overflow channel, flocculant system, power supply, and automation interface.
