Ceramic Vacuum Filtration Equipment
DF Ceramic Filter
For Concentrate Dewatering & Water Recovery
Designed for continuous vacuum filtration of mineral concentrate and fine slurry, using microporous ceramic plates for low-energy dewatering, filtrate recovery, and automatic cake discharge.
Ceramic
Microporous Plate
Vacuum
Low-energy Dewatering
Auto
Backwash Cleaning
Recovery
Filtrate Reuse Support
Key Benefits for Ceramic Filtration Projects
Use this product when fine slurry or concentrate needs continuous filtration, low energy operation, and reusable ceramic plate filtration.
Microporous Ceramic Plate
Ceramic filter plates provide the filtration medium for fine-particle solid-liquid separation.
Low-energy Vacuum Operation
Vacuum suction and ceramic capillary action help reduce energy demand compared with some pressure-based processes.
Continuous Cake Discharge

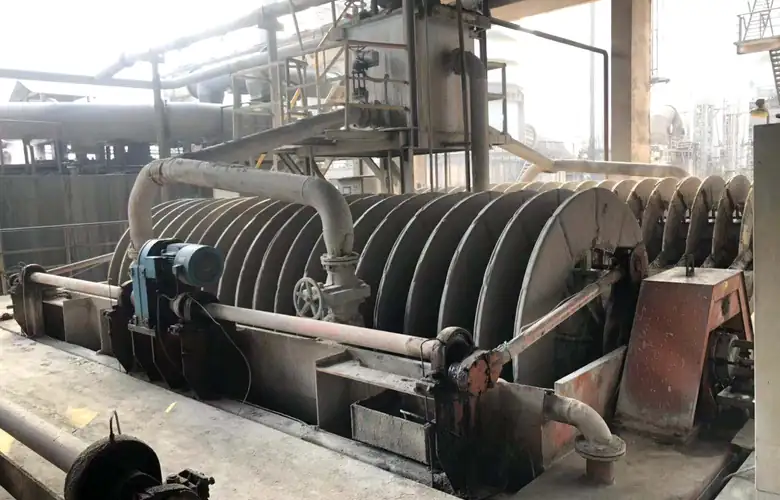

The rotating filter disc moves through adsorption, drying, discharge, and cleaning zones for continuous operation.
Backwashing and Cleaning
Backwashing and cleaning configuration helps restore ceramic plate permeability during operation.
Filtrate Recovery Support
Separated liquid can be collected through the internal plate channels to support process water recovery.
PLC Control Option
Automatic operation, status monitoring, and alarm functions can be configured according to project scope.
Applications in Concentrate and Fine Slurry Treatment
DF Ceramic Filter is commonly selected where mineral concentrate, fine slurry, or process liquid requires stable vacuum filtration and filtrate recovery.
Mineral Concentrate Dewatering
For iron, copper, gold, lead-zinc, rare metal, and non-metallic concentrate filtration.
Discuss Application →Fine Slurry Filtration
For fine-particle slurry where ceramic plate filtration can support stable cake formation.
Discuss Application →Tailings and Water Recovery
For selected tailings or recycle-water duties where low-energy vacuum filtration is suitable.
Discuss Application →Environmental Slurry Treatment
For sewage sludge, waste acid treatment, and selected industrial residue applications after material review.
Discuss Application →Working Principle

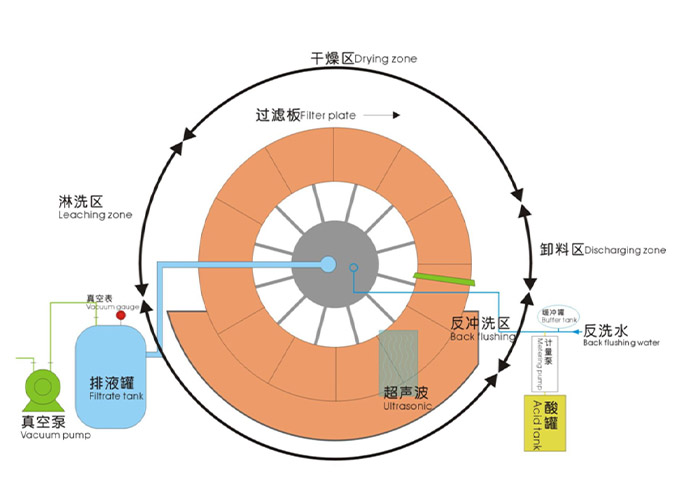

The ceramic plate is immersed in the slurry trough. Under vacuum negative pressure, solids form filter cake on the ceramic plate surface while liquid passes through the porous ceramic medium into internal channels for collection.
Slurry Feeding
The ceramic filter disc rotates through the slurry trough.
Vacuum Adsorption
Negative pressure draws liquid through the ceramic plate.

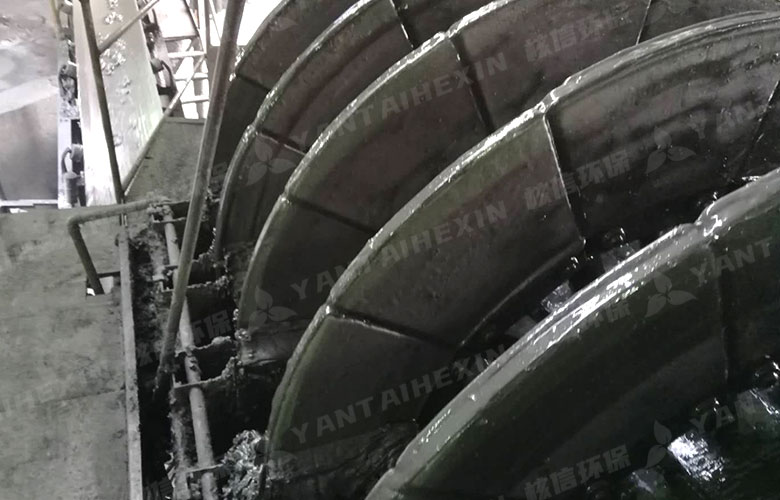

Cake Formation
Fine solids remain on the plate surface to form filter cake.
Vacuum Drying
The cake continues drying as the disc rotates out of the slurry.
Scraper Discharge
The dried cake is removed from the ceramic plate surface.
Plate Backwashing
Backwashing and cleaning help keep ceramic channels open.
Main Structure and Components
The DF Ceramic Filter adopts a modular disc-type structure. Ceramic plates, slurry tank, vacuum system, discharge scraper, cleaning device, and control system work together to maintain stable operation.

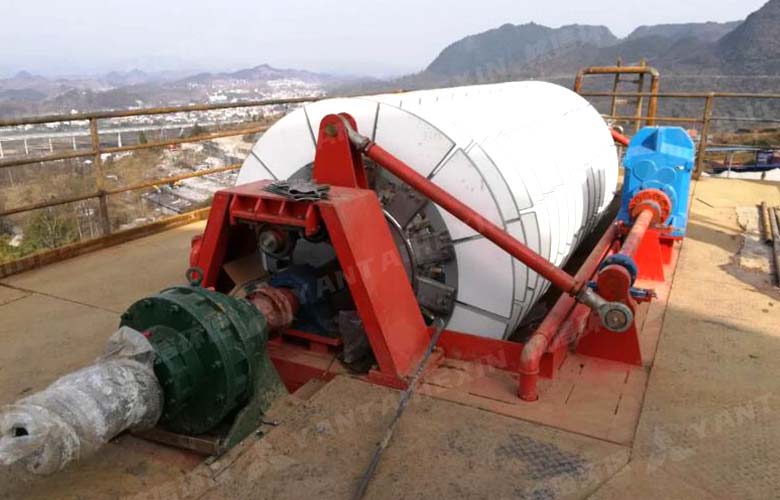

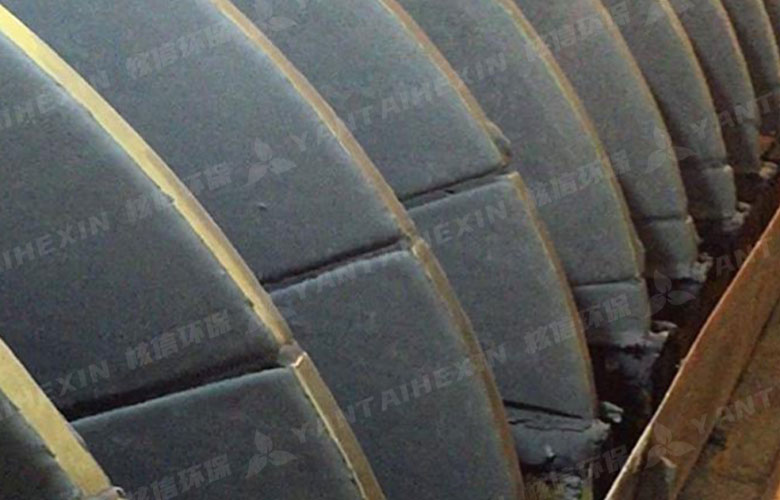

Ceramic Plate System
Microporous ceramic plates provide the filtration surface and internal filtrate channels.

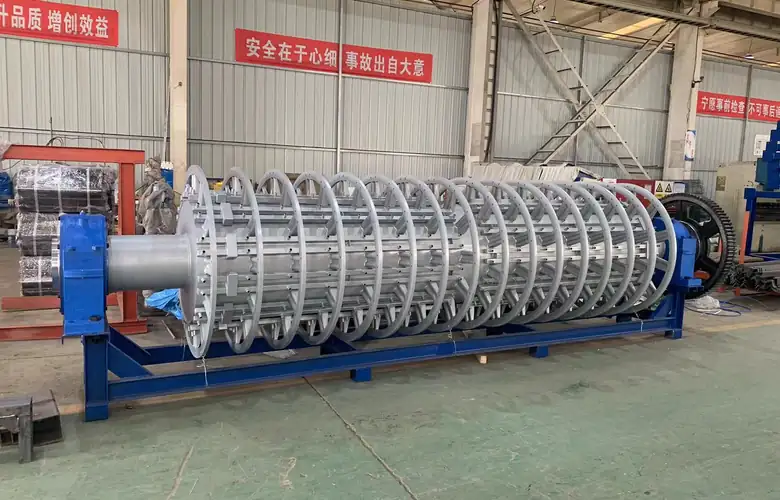

Rotary Disc Assembly
The disc rotates through slurry adsorption, drying, discharge, and cleaning zones.

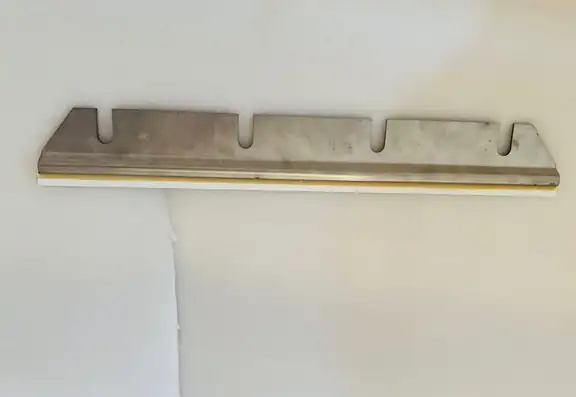

Scraper Discharge
Scraper device removes the dried filter cake from the ceramic plate surface.

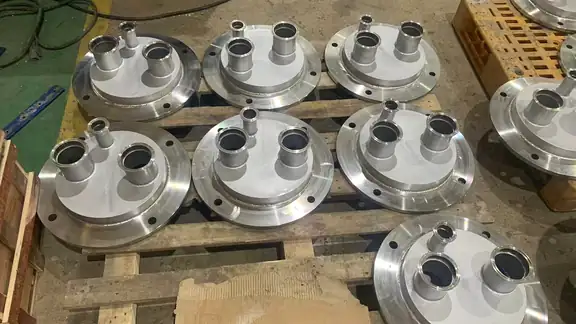

Distribution Head
Controls vacuum and filtrate discharge paths during the filtration cycle.
Cleaning Device

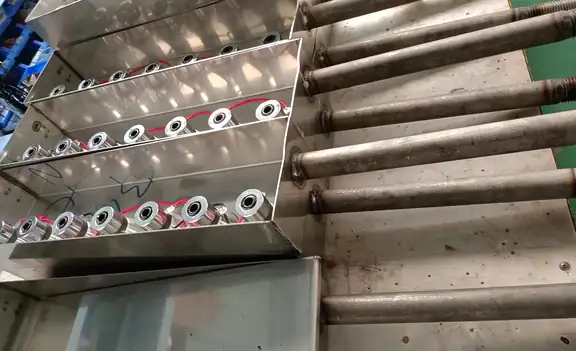

Backwashing or ultrasonic cleaning helps maintain ceramic plate permeability.

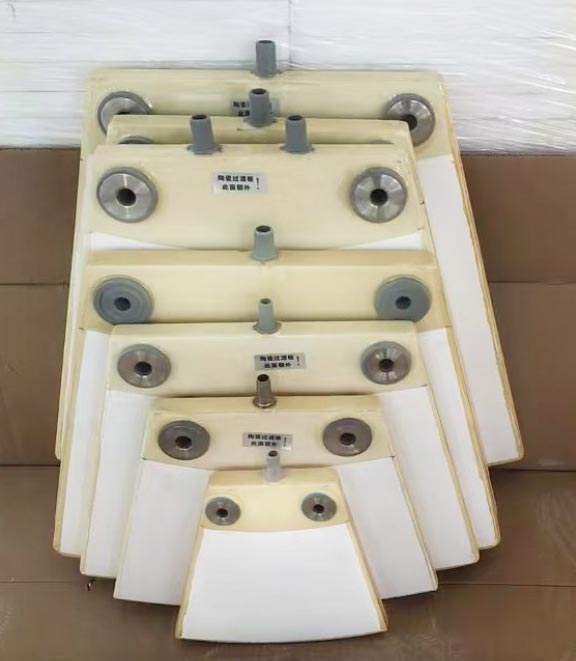

Ceramic Dispenser
Supports stable flow distribution and process control in the ceramic filter system.

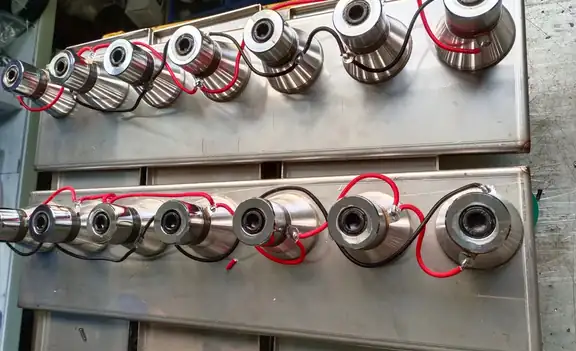

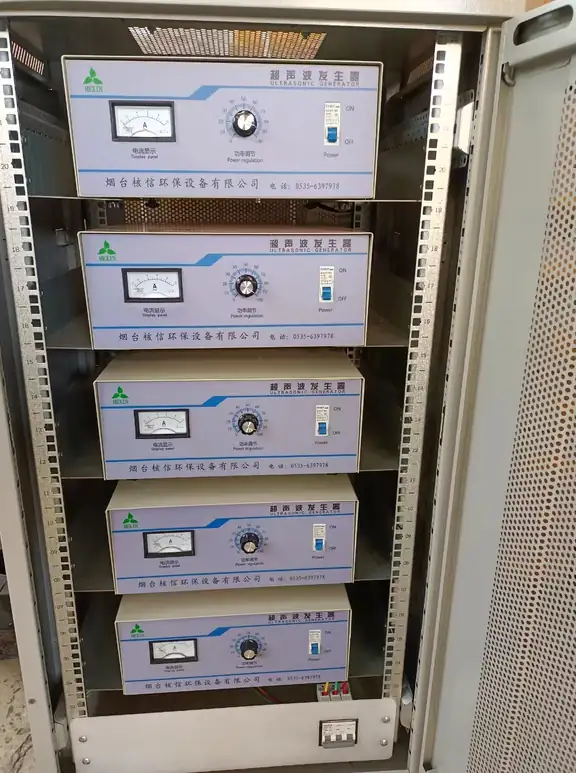

Ultrasonic Power System
Cleaning power system can be configured according to ceramic plate maintenance needs.

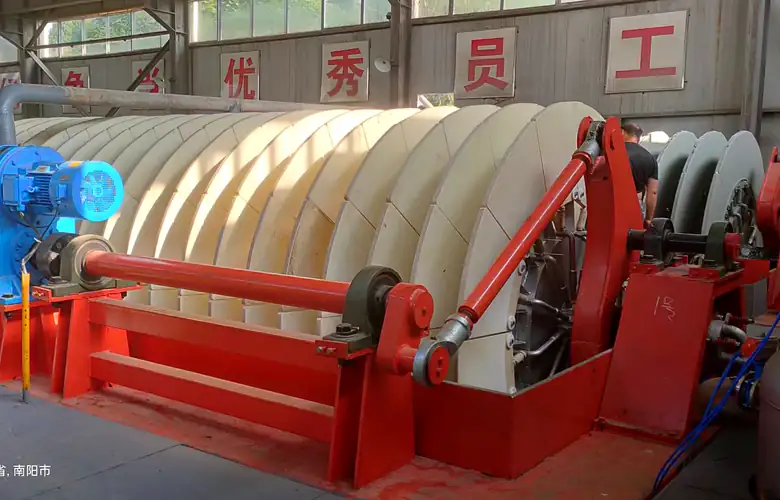

Complete Equipment
Integrated frame, drive, tank, ceramic discs, and control system for project installation.
Technical Specifications
Hexin DF Ceramic Filters are available in multiple filtration area references. Final selection depends on material characteristics, feed solids, particle size, moisture target, and test results.
| Model Reference | Filtration Area Range | Typical Selection Basis |
|---|---|---|
| DF-1 to DF-15 | Small to medium area | Pilot, small-scale, or lower-capacity concentrate filtration |
| DF-21 to DF-45 | Medium area | Continuous mineral concentrate and fine slurry dewatering |
| DF-60 to DF-120 | Large area | Higher-capacity plant filtration and process water recovery |
Available references include DF-1, DF-4, DF-6, DF-9, DF-12, DF-15, DF-21, DF-24, DF-27, DF-30, DF-36, DF-45, DF-60, DF-80, DF-100, and DF-120. Full model parameters should be confirmed with Hexin engineers.
Material and Configuration Options
Different project conditions require different equipment sizes, contact-part materials, process systems, control interfaces, and service scopes.
Ceramic Plate Area
Filtration area and ceramic plate quantity are selected according to capacity and material filtration behavior.

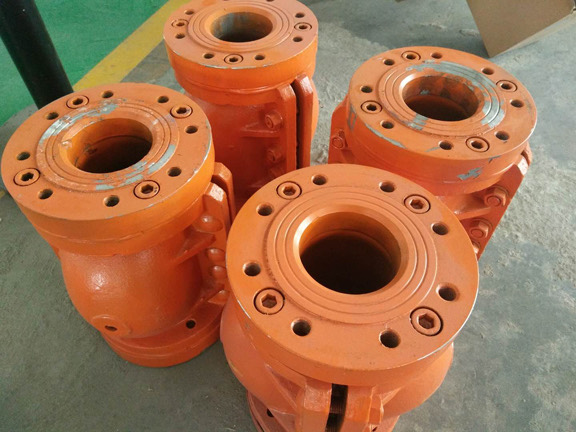

Vacuum and Filtrate System
Vacuum pump, receiver, pipeline, and filtrate discharge configuration are matched to project needs.
Cleaning Configuration
Backwashing, ultrasonic cleaning, and chemical cleaning options can be reviewed according to slurry condition.
Automation Interface
PLC, HMI, alarm monitoring, and site interface can be configured for production-line control.
Why Customers Trust Hexin
Quality Control from Raw Materials to Factory Testing
A Ceramic Filter depends on ceramic plate quality, vacuum sealing, drive reliability, cleaning performance, and control stability. These points should be checked before delivery.
Ceramic Plate Inspection
Check ceramic plate integrity, permeability condition, and installation fit before assembly.
Vacuum and Seal Test
Inspect vacuum chamber, distribution head, filtrate line, and sealing performance.
Cleaning System Test
Verify backwashing, ultrasonic cleaning, water supply, and control response where applicable.
Technical Confirmation
Review material type, capacity, target moisture, ceramic plate area, cleaning method, and automation scope.
Plate and Component Check
Check ceramic plates, scrapers, drive parts, tank, vacuum system, and electrical components before assembly.
Fabrication and Assembly
Control frame dimensions, tank condition, rotating structure, scraper alignment, and surface protection.
Factory Test Run
Test rotation, vacuum response, discharge action, cleaning function, and electrical control before delivery.
Project-based Filtration Solutions
Ceramic filtration projects vary by particle size, slurry concentration, mineral type, filtration speed, cake moisture target, and recovery requirement. Hexin recommends equipment configuration after reviewing material and project data.
Mineral Concentrate Filtration Project
For fine concentrate filtration where ceramic plate technology can support low-energy dewatering and filtrate recovery.
Send Project Data →Process Water Recovery Project
For plants looking to recover filtrate, stabilize slurry treatment, and reduce downstream water handling pressure.
Send Project Data →Industrial Fine Slurry Treatment
For selected fine-particle slurry duties where vacuum ceramic filtration is technically suitable.
Send Project Data →
Delivery, Service and Export Packing
Agree manufacturing, shipment and commissioning responsibilities as part of the technical proposal and supply contract.
Manufacturing Schedule
After technical proposal and supply scope confirmation, Hexin prepares a project-specific production schedule based on equipment size, materials, purchased components, and automation requirements.
Commissioning Support
Support can cover installation review, no-load testing, process checks, equipment adjustment, performance observation, and operator training according to project scope.
Export Packing
Large equipment can be fixed with steel structure packing, while small components and electrical parts can use wooden cases with moisture and rust protection.
Need a DF Ceramic Filter for Your Project?
Send us your material type, capacity, particle size, feed solids, target cake moisture, and project country. Hexin engineers will help recommend a suitable ceramic filtration solution.
What to Include in Your Inquiry
Material Information
Material name, slurry concentration, particle size, pH value, temperature, corrosiveness, and whether filtrate recovery is required.
Process Requirements
Hourly or daily capacity, target cake moisture, filtration area expectation, and operation schedule.
Site and Cleaning Conditions
Water supply, compressed air, power supply, cleaning preference, automation requirements, and installation space.
